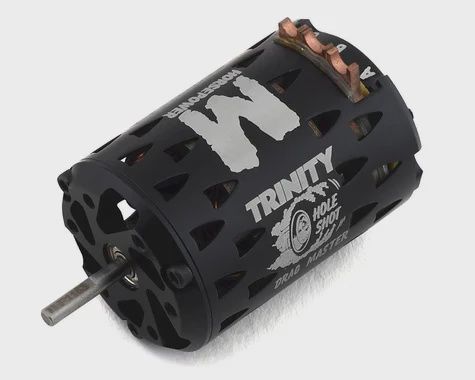

Trinity Drag Master 4.0T Holeshot (TRIDM40)

Trinity Drag Master 4.0T Holeshot (TRIDM40)

$139.99
In stock: 1 available
Product Details
UPC: 0690776130188
The Trinity Drag Master Holeshot Brushless Drag Race Motor was designed to deliver the horsepower and speed needed for extreme prep track Pan Cars & Touring Cars.

Features:
  • Drag Master Holeshot
  • Aluminum based sensor board for true sensor alignment
  • Infinite Timing Adjustment
  • 2mm Copper Tabs
  • Thicker Pure Copper Solder Tabs and Collector
  • Thermal Stator Coating for the best heat dissipation possible
  • Turbine style vented nose
  • More Vents for More Cooling
  • 220C wire coating
  • Certified Gauge High Temperature Wire
  • Short Stack Stator Design
  • Updated Stator Material
  • Grade 5 Ball Bearings
  • Uses all D3.5, D4 and 24K Rotors
  • 8150Kv - this number is approximate set as Zero Degrees of Timing. Sensored Brushless Motors are not rated in Kv's due to the fact that timing and voltage can affect the Kv number.
NOTE:
  • MAX Voltage 11.1v 3 Cell Lipo Battery
  • Check your ESC Specs to make sure that it can handle down to a 4.0t. Trinity recommends running an 1/8 Scale Speed Control (ESC)
  • There is no warranty on electric drag motors
