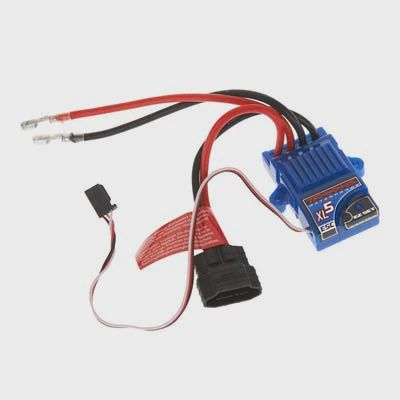

Traxxas XL-5 Sealed Forward/Reverse/Brake ESC (TRA3018R)

Traxxas XL-5 Sealed Forward/Reverse/Brake ESC (TRA3018R)

$59.99
In stock: 3 available
Product Details
UPC: 020334301888
This is the Traxxas XL-5 Waterproof Forward/Reverse
Electronic Speed Control.



FEATURES

EZ-Set pushbutton setup
Efficient low loss MOSFET design with heavy gauge low loss wire
Thermal shutdown protection
Multi-color LED
Training Mode limits throttle output to 50% for new drivers
Programmable with three drive profiles
High capacity heat sink



INCLUDES

Traxxas XL-5 Forward and Reverse Electronic Speed Control with
connectors and instruction manual



REQUIREMENTS

Connecting to motor and battery of vehicle



SPECIFICATIONS

On Resistance Forward: 0.007 Ohms
On Resistance Reverse: 0.014 Ohms
Peak Current-Fwd/Rev: 100A/60A
Braking Current: 60A
Continous Current: 14A
BEC Voltage: 6.0V DC
BEC Current: 1A
Power Wire: 14AWG/ 5"
Input Harness Type: 26AWG/ 9"
Transistor Type: MOSFET
PWM Frequency: 1600Hz
Thermal Protection: Thermal Shutdown
Single Button Setup: Yes
Motor Limit: 15T (540 Size), 12T (550 Size)
Input Voltage: 4-8 Cells (4.8 to 9.6V DC)
Weight: 3.07oz (87g)
