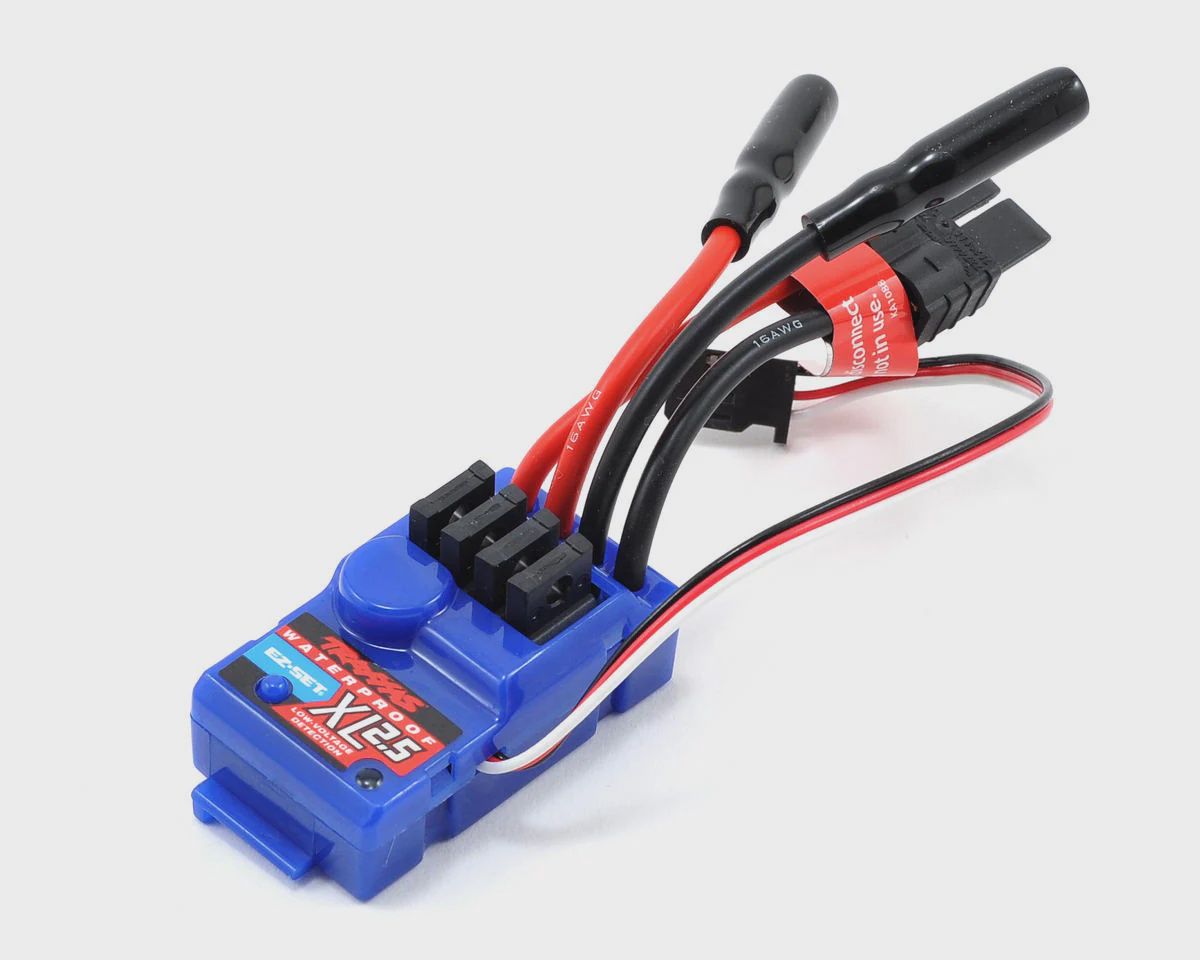

Traxxas XL-2.5 ESC w/Low Voltage Detection (Waterproof) (TRA3024R)
$49.99
In stock: 1 available
Product Details
UPC: 020334302489
This is the Traxxas XL 2.5 Electronic Speed Control, with Low Voltage Detection. Designed and engineered by Traxxas, the XL-2.5 Brushed Electronic Speed Control provides smooth throttle control with 380-size and smaller mini-motors and is completely waterproof for all-weather R/C driving fun. This high-performance ESC is packed with impressive specifications and features that are normally only found on expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 6-8 cell NiMH and 2S LiPo compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support and is backed by the Traxxas Lifetime Electronics Warranty.
Traxxas High-Current Connector
The XL-2.5 ESC is equipped with the Traxxas high-current connectors for restriction-free current flow.
Patent-Pending Training Mode™
An exclusive feature that places the XL-2.5 ahead of the pack is the patent pending Training Mode. This feature reduces the overall power output of the XL-2.5 by 50% making it easier for new drivers to control their model. When they’re ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!
XL-2.5 Waterproof ESC Features:
Traxxas High-Current Connector
The XL-2.5 ESC is equipped with the Traxxas high-current connectors for restriction-free current flow.
Patent-Pending Training Mode™
An exclusive feature that places the XL-2.5 ahead of the pack is the patent pending Training Mode. This feature reduces the overall power output of the XL-2.5 by 50% making it easier for new drivers to control their model. When they’re ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!
XL-2.5 Waterproof ESC Features:
- Innovative waterproof design
- 10-turn motor limit for 380 size motors
- Fully-proportional forward, reverse, and braking control
- Programmable with three drive profiles:
- Sport Mode – Fwd / Brake / Rev
- Race Mode – Fwd / Brake
- Training Mode – 50% Fwd / Brake / 50% Rev
- EZ-Set® push-button setup
- Multi-color LED
- Thermal shutdown protection
- Efficient, low-loss MOSFET design
- High-capacity heat sink
- Smooth, high-frequency operation
- Easy installation in Traxxas models
- Backed by the Traxxas Lifetime Electronics warranty
- Input Voltage: 4-8 cells NiMH; 2S LiPo
- Case Size: 26.5mm W x 46.5mm D x 22mm H
- Weight: 33 Grams
- Motor Limit: 10-turns (380 size)
- On Resistance (@Trans): 0.008 Ohms
- Reverse Delay: None
- BEC Voltage: 6.0V DC
- Power Wire: 16 Gauge / 40mm
- Input Harness Wire: 26 Gauge / 130mm
- Motor Wires: 26 Gauge / 130mm
- Transistor Type: MOSFET
- PWM Frequency: 2300 Hz
- Thermal Protection: Thermal shutdown
- Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, No REV
- Training Mode: 50% FWD, 100% brakes, 50% REV
- Single-button setup: Yes, Traxxas EZ-Set®
