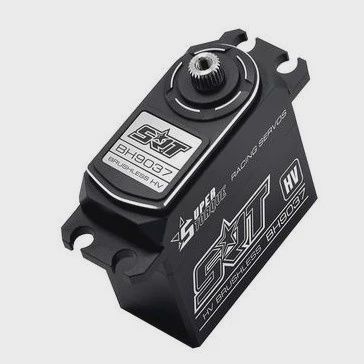

SRT ServoBrushless HV - High torque 35.0kg ( BH9037)
$104.99
In stock: 3 available
Product Details
UPC: 6969009003716
SPECIFICATIONS
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Titanium & Steel
- control system: pulse width control
- working frequence: 1520μs / 330hz
- operating voltage: dc6.0-8.4v
- operating temperature range: -10 to + 60 degree
- operating speed (6.0v): 0.16 sec/60 degrees at no load
- operating speed (7.4v): 0.14 sec/60 degrees at no load
- operating speed (8.4v): 0.13 sec/60 degrees at no load
- stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
- stall torque (7.4v): 35.0kg.cm (486.0 oz/in)
- stall torque (8.4v): 37.0kg.cm (513.8 oz/in)
- potentiometer drive: direct drive
- dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
- weight: 80.0g (2.82 oz)
- connector wire length: jr 250 mm
