Name: Spektrum MT/HS Mini Digital HV Servo (SPMSA5080)
SKU: SPMSA5080
Price: 49.99 USD
Availability: OutOfStock

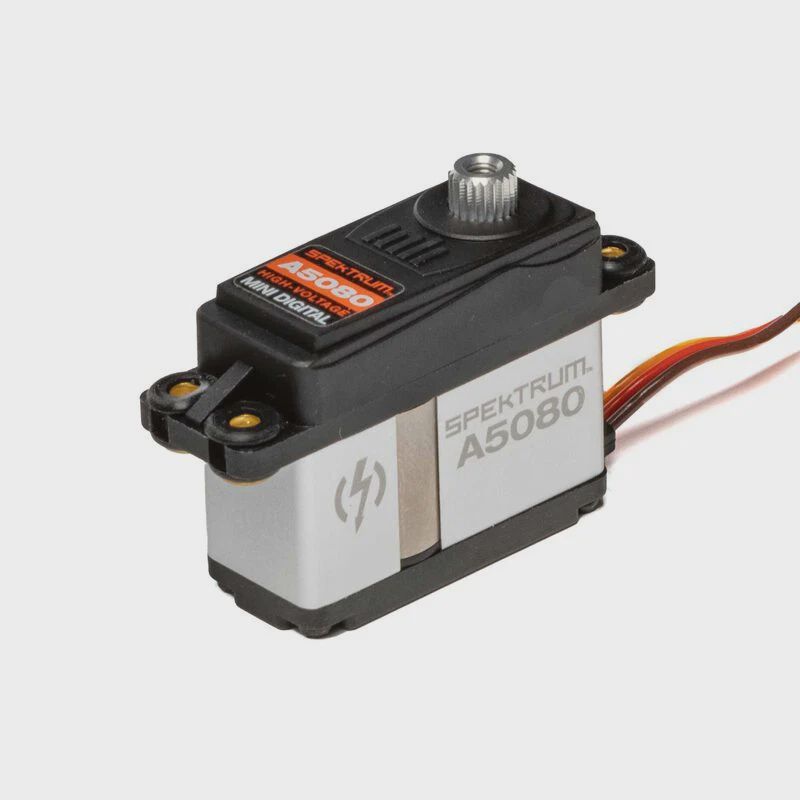

Spektrum MT/HS Mini Digital HV Servo (SPMSA5080)

$49.99

Sold out

Product Details

UPC: 605482153802

Product Details

(1) A5080 Mini Digital Servo
(4) Pre-installed Mounting Grommets and Eyelets With Hardware
(3) Plastic Servo Arms and (1) Screw

Quick Linksh Voltage (HV) capable (4.8 8.4v input range)al gear train

Bearing supported drive train helps maximize smooth operation
Over Current and Temperature protection
Operating Frequency: 200hz to 333hz

A5080 Mid Torque Mid Speed Mini Digital HV MG Servo

The Spektrum^™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.

Product Specifications

Manufacturer #	605482153802
Deadband	<1µs
Input Voltage	4.8V-8.4V
Product Application	Air
Product Height	1.18" (30 mm)
Servo Type	Digital
Application	Airplane
Overload Protection	No
Product Weight	1.2 oz (34g)
Spline Count	23 - Tooth
Water-Resistant	No
Bearing	Single BB
Bushing Or Bearing	Bearing
Gear Type	Metal
Connector Type	Universal
Maximum Servo Speed	0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V
Product Length	1.4" (36 mm)
Maximum Servo Torque	110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V
Motor Type	Brushed
Servo Operating Voltage	4.8 - 8.4V (HV)
Product Width	0.59" (15 mm)
Programmable	No
Prop 65	California Residents Prop 65 WARNINGS.
Servo Size Category
