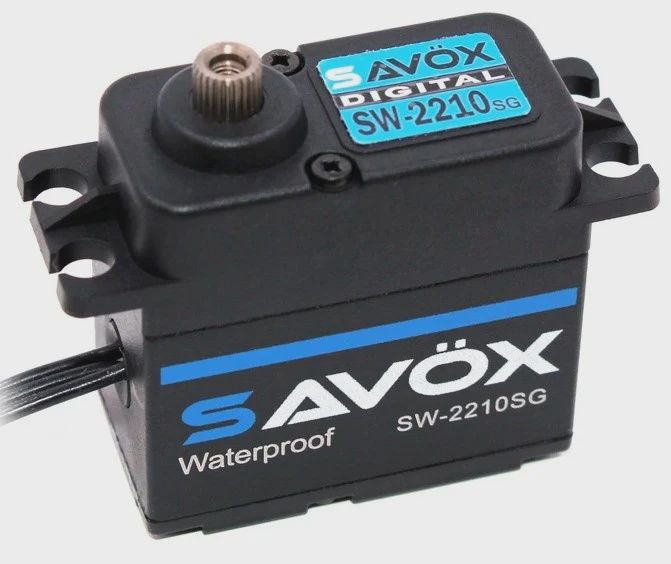

Savox SW-2210SG Waterproof High Torque High Voltage Brushless Digital Servo - Black Edition (SAVSW2210SG-BE)

Product Details

UPC: 4710006994031

This waterproof, steel-geared servo is perfect for Monster Truck and most Scaler and Crawler applications where a slightly taller servo can be fitted. Precision steel gears, stump-pulling torque, and waterproof to IP67 standards (operates for up to 30 minutes in water up to 3 feet deep). Features: Center aluminum with nylon composite top and bottom case Operates directly on 7.4v without the need for an eternal BEC Precision ball bearings Brushless motor Specifications: Torque @6.0V - 26.0 kg/361 oz-in Torque @7.4v - 36.0 kg/500 oz-in Speed @6.0V - 0.14 sec/60 deg Speed @7.4v - 0.11 sec/60 deg Weight: 79g / 2.78oz Dimensions L x W x H mm: 40.6 x 20.7 x 42.0 Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 180mA @6.0V, 220mA @7.4V Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V Idle Current: 5mA @6.0V, 5mA @7.4V Wire Length: 400 +/- 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 → 2200 µ second Maximum Travel: Appx 130° (900 → 2100 µ second) Refresh Rate: 333 Hz Motor Type: Brushless
