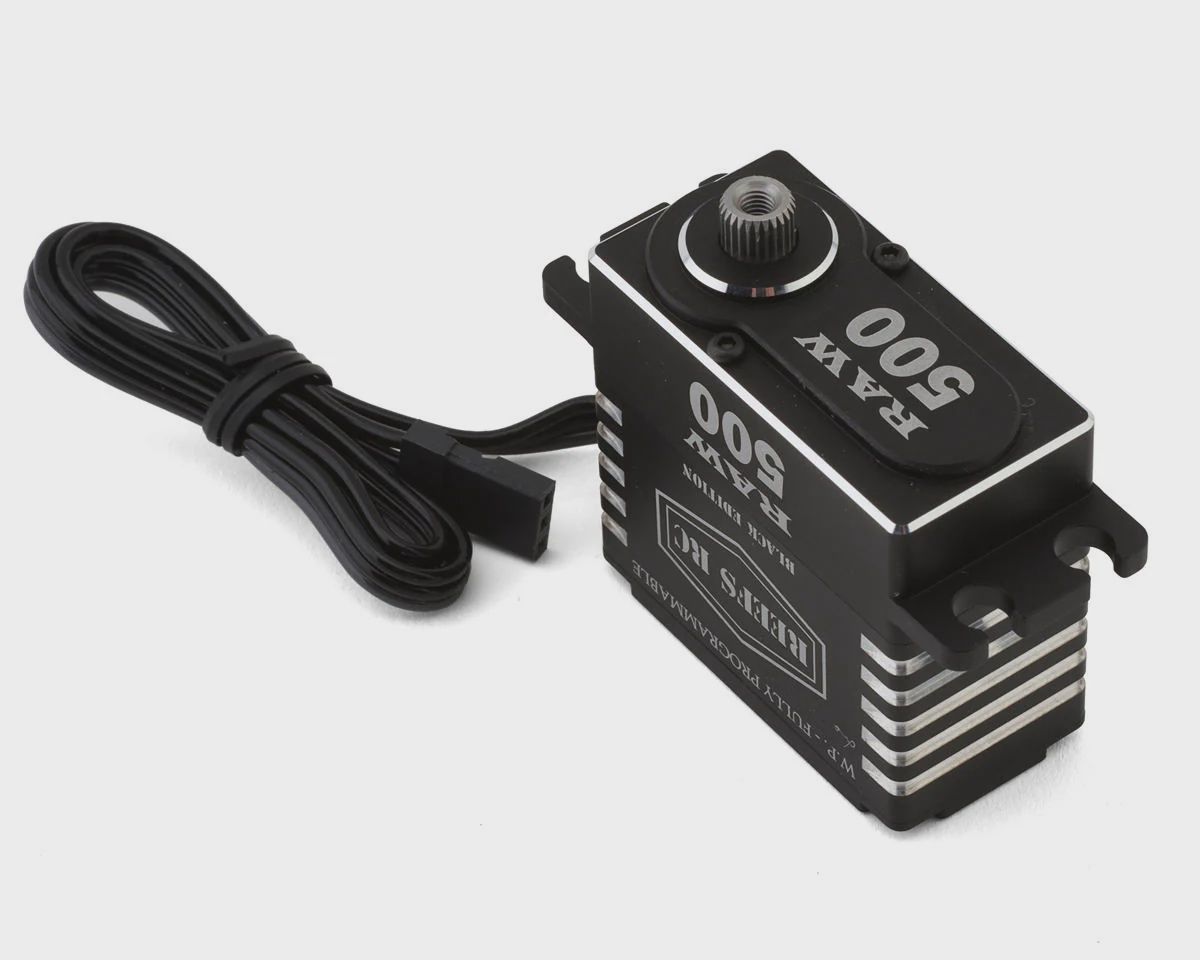

Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Black Edition (SEHREEFS178)

Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Black Edition (SEHREEFS178)

$139.99
Sold out
Sold out
Product Details
UPC: 602024524007

Servo Overview:

This is the Reefs RC RAW500 High Torque and Speed Digital Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its high torque output of 565oz-in (40.7kg-cm) at 8.4 Volts, lightning speed operation of 0.08sec/60° at 8.4 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats!


Features:

  • Powerful 4-Pole brushless motor
  • "Submarine Waterproof" with 7-point seals
  • High voltage capable
  • Magnetic angle sensor
  • Internal steel gears
  • CNC Aluminum casing with "ULTRA" finish
  • Fully Programmable with REEFS Software

Specifications:

  • Speed:
    • @6.0V: 0.11sec/60°
    • @7.4V: 0.09sec/60°
    • @8.4V: 0.08sec/60°
  • Torque:
    • @6.0V: 450oz-in (32.4kg-cm)
    • @7.4V: 500oz-in (36kg-cm)
    • @8.4V: 565oz-in (40.7kg-cm)
  • Motor: Brushless
  • Operating Voltage: 5.0V-8.4V
  • Dimensions(LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
  • Weight: 2.75oz (77.96g)
  • Operating Spline: 25T

Includes:

  • (1) RAW500 Digital Waterproof Brushless Black Edition Servo
  • Assorted Servo Horns and Mounting Hardware

RAW 500 Black Edition - Servo
