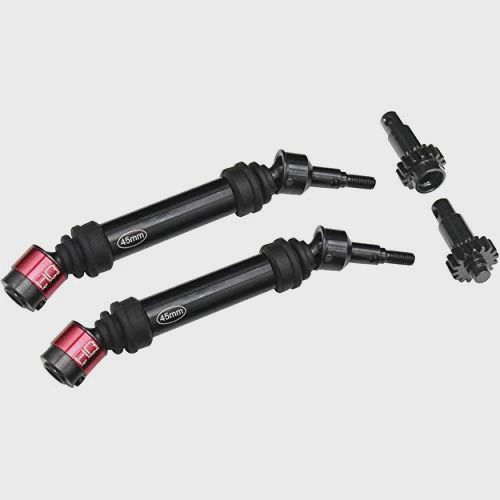

Hot Racing High Performance Cv Splined Driveshafts Front or Rear Arrma (ATF288RC)
$68.99
In stock: 2 available
Product Details
UPC: 0083745294774
Hot Racing optional upgrade heavy duty splined star drive axle kit for 1/10 Arrma 4X4 vehicles. See comments below for specific vehicle fit information.
FEATURES:
- Replaces stock diff outdrives and factory plastic drive axles
- CNC machined and hardened S2 spring steel wheel axle stubs
- CNC machined and hardened #45 steel outdrives, drive hubs, and slider spline
- Hard anodized black aluminum slider
- Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Rubber dust boot to retain lubrication and help protect slider against elements
- Fits front or rear
YOU WILL RECEIVE:
- Two (2) CVD shaft assemblies
- Two (2) CNC steel Output diff gear
- Two (2) M4x2.5x11mm screw shafts
REQUIREMENTS:
- Installation
- Removable thread lock (e. g. blue Loctite) on screws threading into metal
- Light grease for CV joints and shaft slider splines helps maintain their longevity
SPECIFICATIONS:
- Approximate overall collapsed length: 108mm
COMMENTS:
- Replaces stock Arrma AR310775 diff outdrives and AR310780 front shafts, or AR310864 rear shafts
- Replacement parts include:
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Big Rock 4X4 3S BLX: AR102711
- Granite 4X4 3S BLX: AR102666
- Granite 4X4: AR102665 (green), AR102676 (red)
- Senton 4X4: AR102667 (red), AR102678 (blue)
- Senton 4X4 3S BLX: AR102668
- Typhon 4X4 3S BLX: AR102696 (optional - requires Hot Racing ATF117XT02 17mm hubs. W
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Big Rock 4X4 3S BLX: AR102711
- Granite 4X4 3S BLX: AR102666
- Granite 4X4: AR102665 (green), AR102676 (red)
- Senton 4X4: AR102667 (red), AR102678 (blue)
- Senton 4X4 3S BLX: AR102668
- Typhon 4X4 3S BLX: AR102696 (optional - requires Hot Racing ATF117XT02 17mm hubs. W
