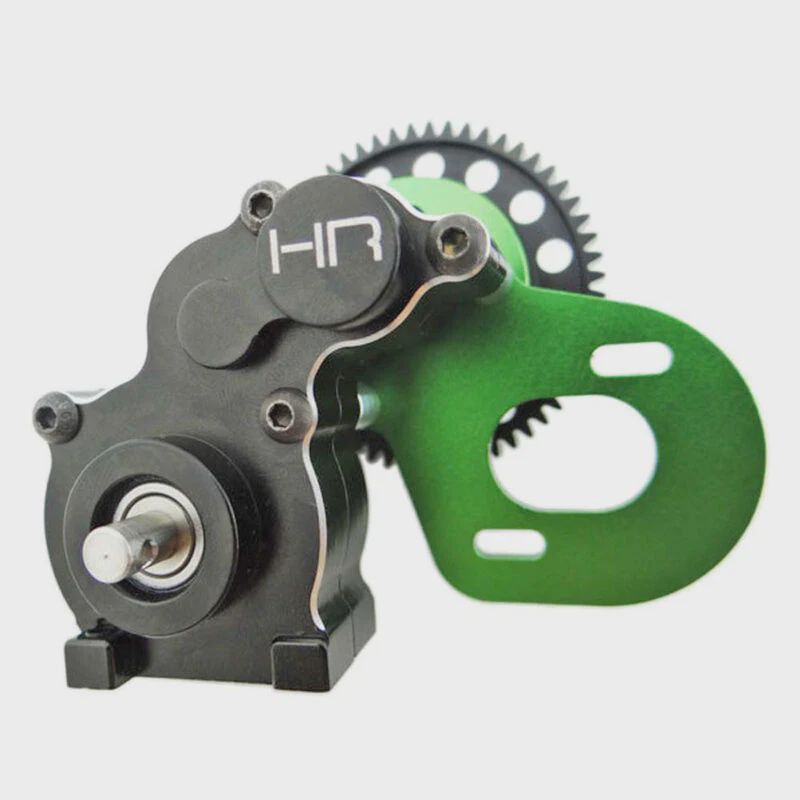

Hot Racing Complete Steel Gear Trans Gearbox:AX10,SCX10 (HRASCP38ST05)
$88.88
Sold out
Sold out
Product Details
UPC: 083745853391
Hot Racing heavy duty complete full metal gear locked center main gearbox transmission with heavy duty 32 pitch, 57 tooth spur gear for the Axial AX10, SCX-10, Honcho, J33P, Dingo, and similar vehicles.
- Full sealed ball bearings
- Locked output gear
- Billet machined aluminum transmission case and motor mount
- Transmission case is anodized black with secondary-processed machined beveled edges
- Motor mount plate and gear hub are anodized green
- Super duty adjustable metallic-pad slipper system
- Heavy duty 32 pitch 57 tooth steel main spur gear
- Assembled and ready to install
- Compatible with Axial AX80078 stock gear cover and Hot Racing SCP32X01 aluminum cover (see requirements below)
- Uses stock bearing sizes for easy replacement, if needed
- Simple hand tools
- Installation
- Recommended to inspect all hardware prior to use and use a removable locking adhesive on screws threading into metal
- For Axial AX80078 gear cover or Hot Racing SCP32X01 aluminum gear cover, Axial backplate AX80078 is required. Backplate center hole may need to be slightly enlarged.
FEATURES:
- Hardened steel spur gear and internal gears
- Full sealed ball bearings
- Locked output gear
- Billet machined aluminum transmission case and motor mount
- Transmission case is anodized black with secondary-processed machined beveled edges
- Motor mount plate and gear hub are anodized green
- Super duty adjustable metallic-pad slipper system
- Heavy duty 32 pitch 57 tooth steel main spur gear
- Assembled and ready to install
- Compatible with Axial AX80078 stock gear cover and Hot Racing SCP32X01 aluminum cover (see requirements below)
- Uses stock bearing sizes for easy replacement, if needed
YOU WILL RECEIVE:
- One (1) complete transmission gearbox with spur gear
REQUIREMENTS:
- Must use with 0.8 Module (32 pitch) pinion Gear
- Simple hand tools
- Installation
- Recommended to inspect all hardware prior to use and use a removable locking adhesive on screws threading into metal
- For Axial AX80078 gear cover or Hot Racing SCP32X01 aluminum gear cover, Axial backplate AX80078 is required. Backplate center hole may need to be slightly enlarged.
SPECIFICATIONS:
- Weight: 5.1oz (146g)Save this product for later
