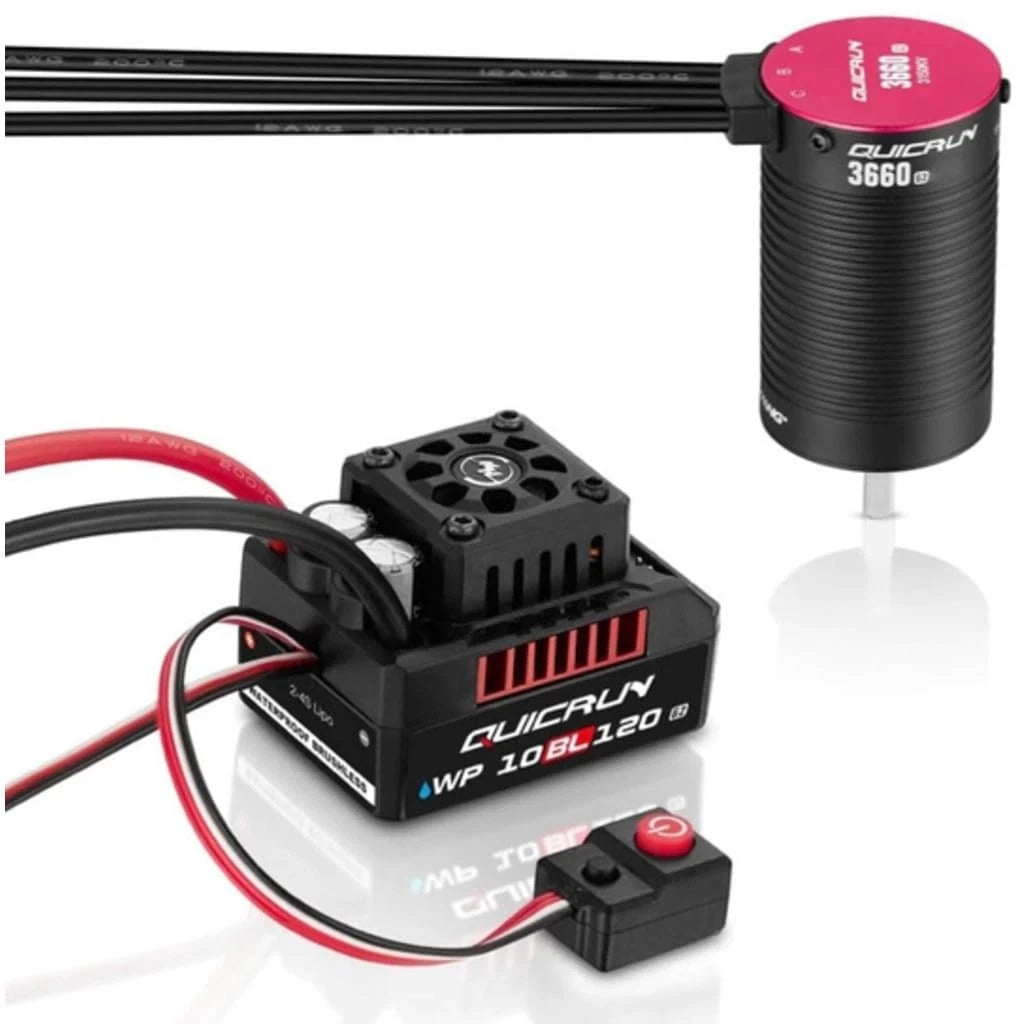

Hobbywing QuicRun 10BL120 G2 Sensorless ESC/3652SL Motor Combo (3250kV) (HWI38030207)

Hobbywing Quicrun 10BL 120A ESC & Motor Combo

The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL's built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.

Features:

• G2 QuicRun 10BL120
• Intelligent freewheeling technology
• Extreme performance
• Powerful built-in BEC
• Efficient cooling system
• Capacitor Thermal Protection
• Built-in capacitor
• IP-67 waterproof Rating

G2 QuicRun 3660SL

• High efficiency for more power with lower temperatures!
• 4-pole rotor design for more torque with strong explosive force.
• Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
• 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.

Specifications:

• ESC:
• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: IP-67
• Current:
• Continuous: 120A
• Peak: 760A
• Input Voltage: 2-4S LiPo
• BEC Output: 6V/7.4V @ 5A
• Output Connectors: 4.0mm Bullets
• Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
• Weight: 4.19oz (119g)
• Motor:
• Input Voltage: 2S-3S LiPo
• KV: 3250kV
• Pole: 4
• Motor Diameter: 1.42" (36mm)
• Motor Length: 2.05" (52mm)
• Shaft Diameter: 0.13." (3.175mm)
• Shaft Length: 0.59" (15mm)
• Front Bearing size: D13*D5*T5
• Rear Bearing size: D13*D5*T4
• Weight: 223g

Includes:

• (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC
• (1) QuicRun 3652SL G2 Sensorless Brushless Motor (3250KV)
