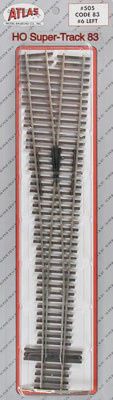

Atlas Code 83 #6 Turnout Left HO (ATL505)


Atlas Code 83 #6 Turnout Left HO (ATL505)

$ 25.99

This is an HO Scale Super-Track 83 Left Hand Track Piece from Atlas.  It's for experienced train collectors.

This turnout is constructed so that regardless of switch point settling, all rails are powered. Because of this, the metal frog is insulated and does not carry current. Most locomotives will span the insulated frog without the loss of electrical pickup; however, engines with an extremely short wheelbase, or diesels with pickup from a single truck may hesitate or stall at the frog.  This condition is easily corrected by equipping turnouts with an Atlas Snap Relay (item #200) which, when wired to the Atlas undertable switch machine
(item #65), will energize the frog with track current of correct polarity.

  • Accurately scaled and spaced tiles.
  • Blackened metal frog allows powering by Atlas Snap Relay.
  • Frog angle is true #6 - 9 degrees/30'.
  • Frog and guardrail flangeways set to NMRA standards.
  • New points eliminate rivets, providing better electrical contact and improved appearance.
  • Four spikes per tie, staggered like U.S. prototype.
  • Designed for under-table switch machines or manual ground throws.
  • Concealed nail holes.
  • Designed for use with common rail system.
  • Universal track joiner included.

  • One HO Scale Super-Track 83 Left Hand Track Piece

  • HO Scale Track for Attachment
  • HO Scale Train Equipment
  • Block of Wood
  • File
  • Modeler's Knife
  • Adult Supervision

  • Scale: HO 1/87
Track Length: 11-1/4" (28.7cm)
