SEHREEFS160 RAW800LP Brass Edition, (SEHREEFS160SD)
SEHREEFS160

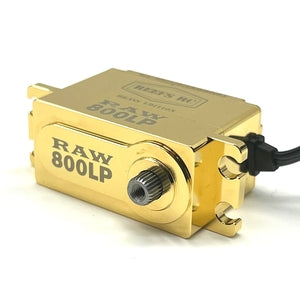

RAW800LP Brass Edition, Fully Programmable, Brushless Low Profile Servo
Note: BEC not required, but recommended for best performance.
Specifications:
- Motor: 4 POLE - Brushless
- Submarine Waterproof: 7 Point Seals
- Positioning: Magnetic Angle Sensor
- Voltage: 4.8V - 8.4V
- Programmable: REEFS LINK required for Programming (Optional)
- Gears: Steel Gears
- Spline: 25T / Dead Band Width: 2 µ
- Case: CNC Aluminum Casing
- Bearing Type: 2 Ball Bearings
- Weight: 2.3oz / 66gm
- Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
- Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
- Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
- Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
- Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
